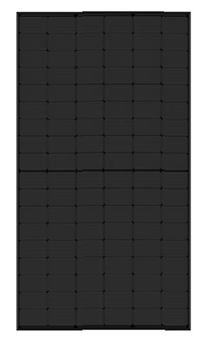

Tiger Neo N-type 54HL4R-B 420-440 Watt
2,000.00 € zzgl. MwSt.
N-Type
Positive power tolerance of 0~+3%
IEC61215(2016), IEC61730(2016)
ISO9001:2015: Quality Management System
ISO14001:2015: Environment Management System
ISO45001:2018 Occupational health and safety management systems
- SMBB Technology
- PID Resistance
- Durability Against Extreme Environmental Conditions
- Hot 2.0 Technology
- Enhanced Mechanical Load
| SPECIFICATIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Module Type | JKM420N-54HL4R-B | JKM425N-54HL4R-B | JKM430N-54HL4R-B | JKM435N-54HL4R-B | JKM440N-54HL4R-B | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 420Wp | 316Wp | 425Wp | 320Wp | 430Wp | 323Wp | 435Wp | 327Wp | 440Wp | 331Wp |
| Maximum Power Voltage (Vmp) | 32.16V | 29.95V | 32.37V | 30.19V | 32.58V | 30.30V | 32.78V | 30.50V | 32.99V | 30.73V |
| Maximum Power Current (Imp) | 13.06A | 10.55A | 13.13A | 10.60A | 13.20A | 10.66A | 13.27А | 10.72A | 13.34A | 10.77A |
| Open-circuit Voltage (Voc) | 38.74V | 36.80V | 38.95V | 37.00V | 39.16V | 37.20V | 39.36V | 37.39V | 39.57V | 37.59V |
| Short-circuit Current (Isc) | 13.51A | 10.91A | 13.58A | 10.96A | 13.65A | 11.02A | 13.72A | 11.08A | 13.80A | 11.14A |
| Module Efficiency STC (%) | 21.02% | 21.27% | 21.52% | 21.77% | 22.02% | |||||
| Operating Temperature(°C) | -40°C ~ +85°C | |||||||||
| Maximum system voltage | 1000VDC (IEC) | |||||||||
| Maximum series fuse rating | 25A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Temperature coefficients of Pmax | -0.29%/°C | |||||||||
| Temperature coefficients of Voc | -0.25%/°C | |||||||||
| Temperature coefficients of Isc | 0.045%/°C | |||||||||
| Nominal operating cell temperature (NOCT) | 45±2°C | |||||||||
| Packaging Configuration |
|---|
| ( Two pallets = One stack ) |
| 36pcs/pallets, 72pcs/stack, 936pcs/ 40’HQ Container |
| Mechanical Characteristics | |
|---|---|
| Cell Type | N type Mono-crystalline |
| No. of cells | 108 (6×18) |
| Dimensions | 1762×1134×30mm (69.36×44.65×1.18 inch) |
| Weight | 22 kg (48.50 lbs) |
| Front Glass | 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length |
| Power | 420Wp, 425Wp, 430Wp, 435Wp, 440Wp |
|---|
